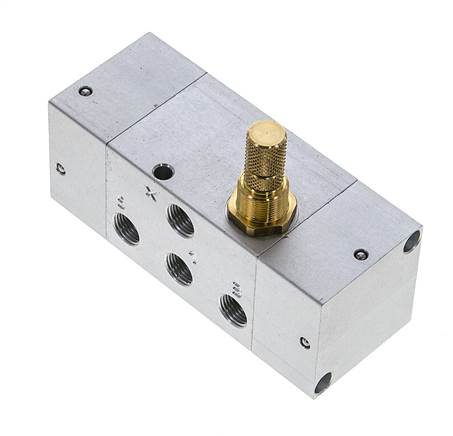

5/2-way time valve, 1 to 10 seconds, Delayed backwash filter
Item number:
VZ 18 513 B
Item description
Materials:
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Connection 1
Function:
Type VZ 18 512 B (reaction: delayed, backwash filter: immediate): A continuous signal on connection X effects a changeover of the valve after the time that has been set. If there is no signal any more at connection X, the valve goes back into its initial position.
VZ 18 513 B type (reaction: immediate, backwash filter: delayed): A continuous signal at the connection X triggers an immediate switching of the valve. The valve switches back to the initial position according to the time set. If no signal is at connection X, then the valve also switches back to the initial position.
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Connection 1
Function:
Type VZ 18 512 B (reaction: delayed, backwash filter: immediate): A continuous signal on connection X effects a changeover of the valve after the time that has been set. If there is no signal any more at connection X, the valve goes back into its initial position.
VZ 18 513 B type (reaction: immediate, backwash filter: delayed): A continuous signal at the connection X triggers an immediate switching of the valve. The valve switches back to the initial position according to the time set. If no signal is at connection X, then the valve also switches back to the initial position.
Properties
| function | Delayed backwash filter |
| Thread (3x) | G 1/8" |
| Thread exhaust air (2x) | G 1/8" |
| Thread control connection (1x) | G 1/8" |
| flow [l/min] | 530 |
| Operating pressure [bar] | 3 - 10 |
| Time range [s] | 1 - 10 |
Further information on VZ18513B
| Weight | 290 g / pcs |
| GTIN | 4050571730109 |
| Customs duty number | 84814090 |
Documents
- Catalogue page Atlas 9 (Page 781) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
