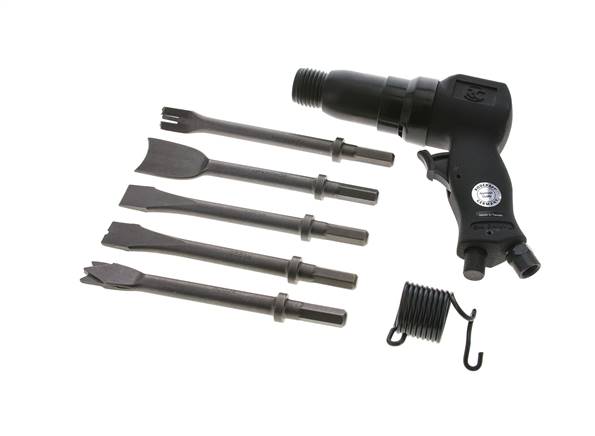

Chisel hammer set with 5 chisels for sheet metal working (RC 18S, RC 19S, RC 20S, RC 22S and RC 60S)
Item number:
5120
Item description
Temperature range:
-10°C to +45°C
Operating pressure:
6,3 bar
-10°C to +45°C
Operating pressure:
6,3 bar
Properties
| Version | Chisel hammer set with 5 chisels for sheet metal working (RC 18S, RC 19S, RC 20S, RC 22S and RC 60S) |
| Requirement type | increased |
| Hexagonal socket [mm] | 11,0 |
| Number of blows [1/min] | 3.000 |
| Stroke [mm] | 60 |
| Air consumption [l/min] | 59 |
| Sound pressure level [dB(A)] | 95 |
| Air connection | Rp 1/4" |
| Replacement hammer spring | RC 70 |
| Replacement chisel holder | RC 76-1 |
Further information on 5120
| Weight | 1,5 kg / pcs |
| GTIN | 4050571866389 |
| Customs duty number | 84671900 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 947) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
