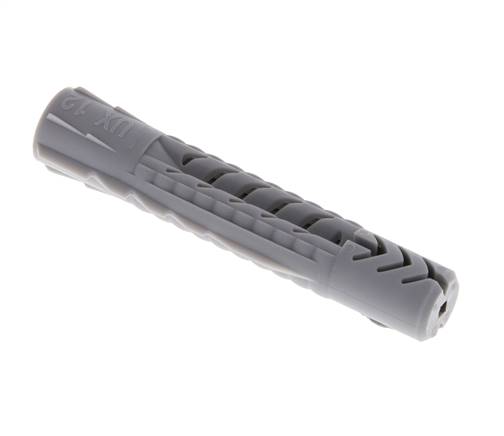

FISCHER dowel, UX 12x70 without a border, 25 pack
Item number:
DUBEL UX12X70
Item description
Application:
Concrete and solid brick wall materials, honeycomb brick, aerated concrete, plaster, particle boards, etc. For wall assembly, the dowel must be placed flush in the carrying underground; for manifold assembly, please observe minimum board thickness.
Screws that can be used:
Wood or chipboard screws
Concrete and solid brick wall materials, honeycomb brick, aerated concrete, plaster, particle boards, etc. For wall assembly, the dowel must be placed flush in the carrying underground; for manifold assembly, please observe minimum board thickness.
Screws that can be used:
Wood or chipboard screws
Properties
| Version | without a border |
| Bore diameter [mm] | 12 |
| Min. hole depth [mm] | 85 |
| Dowel length [mm] | 70 |
| min. board thickness [mm] | 70 |
| Screw diameter [mm] | 8 - 10 |
| Amount | 25 pack |
Further information on DUBELUX12X70
| Weight | 150 g / pcs |
| GTIN | 4006209627587 |
| Customs duty number | 39269097 |
| Manufacturer | Fischer |
Documents
- Catalogue page Atlas 9 (Page 1145) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
