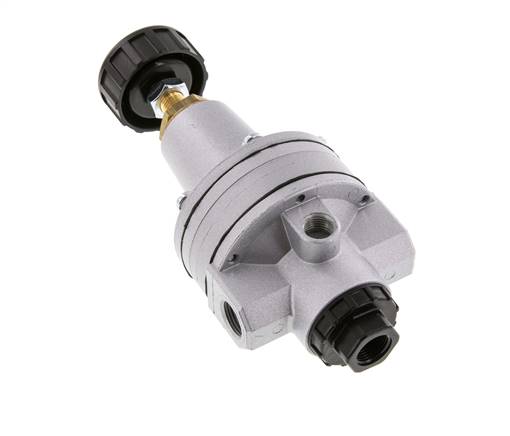

High-performance precision pressure regulator, G 3/8", 0,05 to 7 bar

Application:
High performance precision pressure regulators are used in order to adjust an extremely accurate pressure - regardless of pre-pressure and flow performance. It is used for example for control and regulation units in process engineering, which has the highest pressure stability requirements.

Version:
Precision pressure reducer, reversible (with secondary relieving), (model series 2: collective relieving through 3/8"-borehole)

Materials:
Body: die-cast zinc Z410, diaphragms and seals: EPDM (model series 2: NBR)

Temperature range:
-10°C to max. +60°C (model series 2: -35°C to max. +60°C)

Input pressure:
max. 16 bar

Pressure gauge connection:
G 1/8" (model series 2: G 1/4")

Switch panel thread:
M 12x1 (series 2: M 20x1.5)

Own air consumption:
1.7 to 2 l/min

Control accuracy:
± 2.5 mbar

Media:
fine-filtered compressed air (5 µm) & neutral gases, oil-free

Flow:
900 l/min (model series 2: 6500 l/min), relief system: 200 l/min (model series 2: 800 l/min)

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Advantages:
•Automatic venting in case of overpressure on the secondary side (series 2: up to 800 l/min),
•High flow rate at constant pressure,
•Fine regulation of pressure independent of inlet pressure and flow rate,
•Series 2: can be used down to -35 °C!,
•Supplied exhaust air (G 3/8") for secondary venting (series 2)

Warning:
This device is supplied without a pressure gauge. We recommend ordering a suitable pressure gauge separately.

Model series	Model series 2
Thread	G 3/8"
Pressure regulation range [bar]	0.05 - 7
Mounting brackets	BW 30
Temperature range [°C]	-35 to +60

{{ $t('shop.all.gewicht') }}	1,5 kg / pcs
{{ $t('shop.all.gtin') }}	4050571822248
{{ $t('shop.display.artikel.zollwarennummer') }}	84811099
