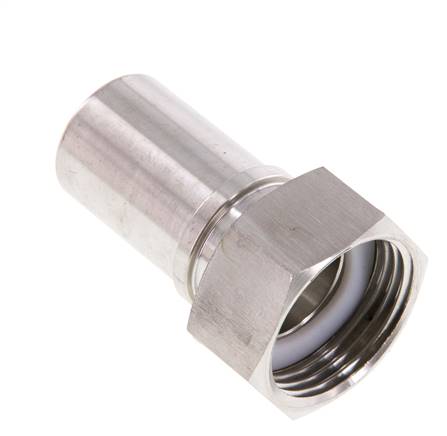

Hose screw connection, EN14420-5 G 1"-25 (1")mm, 1.4408
Item number:
STTW 1025 ES
Item description
Materials:
Seal: Polyurethane (1.4408: PTFE)
Operating pressure:
25 bar
Version:
flat sealing hose connections smooth with safety collar
Note:
The hose assembly is carried out using shell hose clamps to EN 14420-3 (DIN 2817)
Seal: Polyurethane (1.4408: PTFE)
Operating pressure:
25 bar
Version:
flat sealing hose connections smooth with safety collar
Note:
The hose assembly is carried out using shell hose clamps to EN 14420-3 (DIN 2817)
Properties
| Material | 1.4408 |
| Thread | G 1" |
| Hose diameter (inner) [mm] | 25 (1") |
| Accessories Hose clamp | SSA 39 / SSA 43 |
| Replacement seals | STTW DR 10 PTFE |
| Temperature range [°C] | -30 to +300 |
Further information on STTW1025ES
| Weight | 120 g / pcs |
| GTIN | 4050571648978 |
| Customs duty number | 73071990 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 126a) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
