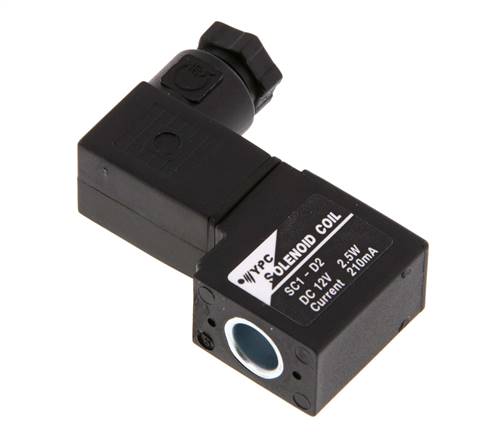

Item description
Power-on time:
100% ED
Scope of delivery:
Solenoid coil including. plug or cable
Note:
These magnetic coils are intended exclusively as replacement parts for solenoid valves sold by us with specifications of the magnet shape. We take no liability for use with other valves!
100% ED
Scope of delivery:
Solenoid coil including. plug or cable
Note:
These magnetic coils are intended exclusively as replacement parts for solenoid valves sold by us with specifications of the magnet shape. We take no liability for use with other valves!
Properties
| Design | L |
| Control voltage | 24 V AC |
| Power output | 3,5 VA |
| Plug size | 0 |
| Outer dimensions [mm] | 15 x 26 x26 |
| Distance anchor holes L [mm] | 25 |
| Anchor holes, lower D1 [mm] | 8,0 |
| Anchor holes, upper D2 [mm] | 7,2 |
| Countersink, lower D3 [mm] | 10,3 |
| Countersink, upper D4 [mm] | 8,0 |
Further information on MAGL24VAC
| Weight | 34 g / pcs |
| GTIN | 4050571885939 |
| Customs duty number | 85059029 |
Documents
- Catalogue page Atlas 9 (Page 776) (PDF)
- Data sheet (Print view)
*Coil must be operated with enclosed plug with integrated rectifier
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
