Item description
Flow:
Kv-value 0.35 m³/h, 330 l/min*
Version:
Self-relieving (with secondary vent), optionally non-relieving
Materials:
Seals: FKM, membrane: NBR (PTFE-coated)
Temperature range:
-20°C to +80°C
Input pressure:
max. 30 bar
Media:
oiled and unoiled compressed air, non-toxic gasses (with option -NB: Gasses and liquids, demineralised water (with option -CO: CO2 (only for brass type))
Pressure gauge connection:
G 1/8"
Switch panel thread:
M 30x1,5
Optional:
Version non-reversible for gases and liquids (NBR membrane, PTFE-coated), -NB, Version non-reversible with EPDM seals for CO2 (only for type Brass) -CO
Kv-value 0.35 m³/h, 330 l/min*
Version:
Self-relieving (with secondary vent), optionally non-relieving
Materials:
Seals: FKM, membrane: NBR (PTFE-coated)
Temperature range:
-20°C to +80°C
Input pressure:
max. 30 bar
Media:
oiled and unoiled compressed air, non-toxic gasses (with option -NB: Gasses and liquids, demineralised water (with option -CO: CO2 (only for brass type))
Pressure gauge connection:
G 1/8"
Switch panel thread:
M 30x1,5
Optional:
Version non-reversible for gases and liquids (NBR membrane, PTFE-coated), -NB, Version non-reversible with EPDM seals for CO2 (only for type Brass) -CO
Properties

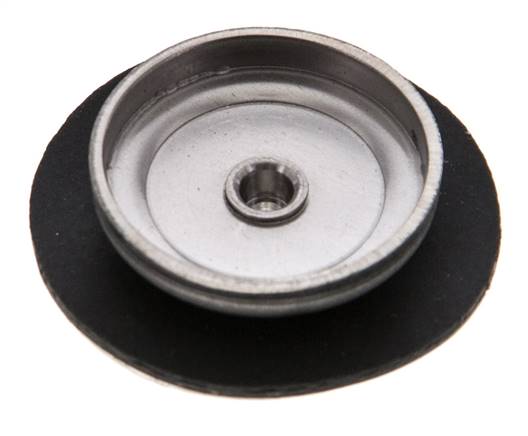

| Version | Replacement diaphragm made of NBR/PTFE, not resettable, for regulating option -NB |
Further information on MEMBR014ES-NB
| Weight | 8 g / pcs |
| GTIN | 4050571486181 |
| Customs duty number | 40169991 |
Documents
*At 8 bar input pressure, 6 bar outlet pressure and 1 bar pressure drop
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
