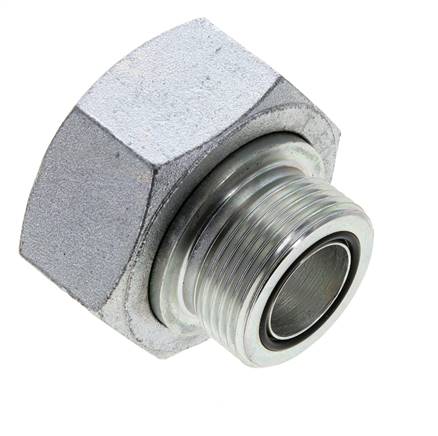

ORFS screw connection UN 2"-12(Female thread)-UN 1-7/16"-12(male thread)
Item number:
RED 24-16 ORFS
Properties
| Material | Zinc plated steel |
| ORFS1 (internal) | UN 2"-12 |
| ORFS2 (external) | UN 1-7/16"-12 |
| PN [bar] | 250 |
Further information on RED24-16ORFS
| Weight | 420 g / pcs |
| GTIN | 4050571574475 |
| Customs duty number | 73269098 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 257) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
