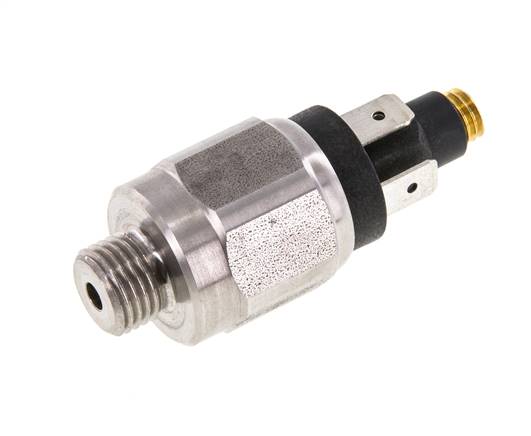

Pressure switch, 1.4305 1 to 10 bar (Opener (NC)), G 1/4"
Item number:
DRSO 10 B ES
Item description
Materials:
Body: zinc-plated steel or stainless steel 1.4305 (vacuum switch: brass), diaphragms**: NBR
Temperature range:
-25 to +85 °C
Switch-back difference (hysteresis)
15 - 20 % (vacuum switch 15 - 25%) of the value that has been set
Protection class:
IP 65 (clamps IP 00)
Electrical connection:
Blade connector 6.3x0.8 (AMP 6.3x0.8)
Media:
Hydraulic oil, oil emulsion, air, (also partially suitable for water)
Body: zinc-plated steel or stainless steel 1.4305 (vacuum switch: brass), diaphragms**: NBR
Temperature range:
-25 to +85 °C
Switch-back difference (hysteresis)
15 - 20 % (vacuum switch 15 - 25%) of the value that has been set
Protection class:
IP 65 (clamps IP 00)
Electrical connection:
Blade connector 6.3x0.8 (AMP 6.3x0.8)
Media:
Hydraulic oil, oil emulsion, air, (also partially suitable for water)
Properties
| Version | Pressure switches |
| Switch type | NC contact |
| Setting range [bar] | 1 - 10 |
| External thread | G 1/4" |
| Material | 1.4305 |
| Safe at overpressure up to [bar] | 20 |
| Switch capacity* | max. 5000 mA (AC/DC) |
| Operating voltage | 0 - 42 V (AC/DC) |
| H [mm] | 49 |
| Safety caps | DRSB SCHUTZKAPPE |
Further information on DRSO10BES
| Weight | 65 g / pcs |
| GTIN | 4050571853167 |
| Customs duty number | 85365019 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 685) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*at 30 V DC, **settings range > 10 bar controller using stainless steel pistons, seal: UR, ***Ø 28, switchback difference: 10 - 15%
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
