Spannband für pneumat. Zylinderschalter

ZS PNEU SP

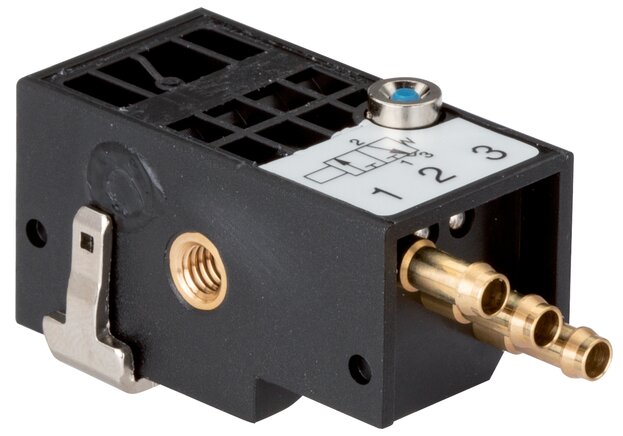

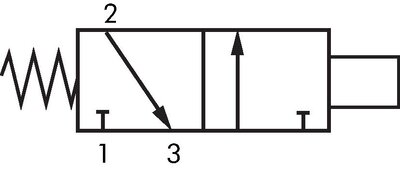

Exemplary representation: Pneumatic cylinder switch for round cylinders Schematic symbol: Pneumatic cylinder switch
74,08€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Plastic

Temperature range:
-15°C to +60°C

Media:
unoiled, filtered compressed air

Application:
The cylinder switch is a 3/2-way valve controlled via the magnetic piston of a cylinder. It can be used to control pneumatic circuits, where it is very difficult to design and fit a limit switch. In contrast to a pneumatic sensor fitting, similar to an electric cylinder switch, a pneumatic cylinder switch allows querying the exact position of the piston and need not be positioned in the end position.

Warning: Order accessories at the same time!

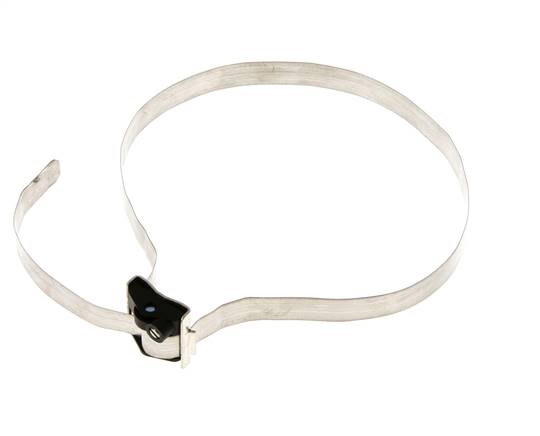

1 unit tension band
ZSPNEUSP
{{ $t('shop.all.gewicht') }} 20 g / pcs
{{ $t('shop.all.gtin') }} 4050571817404
{{ $t('shop.display.artikel.zollwarennummer') }} 85365019
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 888) atlas9_seiten/888.pdf
    Documentation: Tips for selecting the right cylinder switch doku/leitfadenzurauswahldesrichtigenzylinderschalters.pdf
