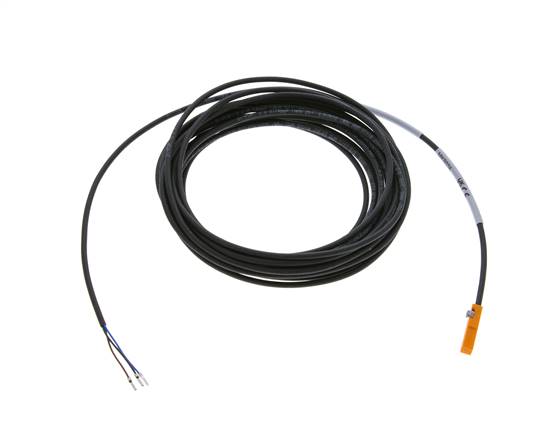

T-groove (5mm) cylinder switch, fully electronic sensor (reverse polarity protection / short circuit
Item number:
ZSB 33 EX
Item description
Materials:
Body: plastic, threaded part: Stainless steel
Connecting line:
PUR cable
Protection class:
IP 67
Temperature range:
-20 to +60 °C
ATEX device identification:
II 3D Ex tc IIIC T125°C Dc X & II 3G Ex nA IIC T4 Gc X
Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. This sensor can be used from the top in the T-groove and clamped in the T-groove using a slotted screw.
Suitable:
For cylinders with not continuous and continuous T groove (5 mm)
Advantages:
•can be mounted from above in T-groove,
•no fastening material required,
•one switch fits many products of most European brands (e.g. Festo)
•ATEX approval Group II, Cat. 3D / 3G
Body: plastic, threaded part: Stainless steel
Connecting line:
PUR cable
Protection class:
IP 67
Temperature range:
-20 to +60 °C
ATEX device identification:
II 3D Ex tc IIIC T125°C Dc X & II 3G Ex nA IIC T4 Gc X
Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. This sensor can be used from the top in the T-groove and clamped in the T-groove using a slotted screw.
Suitable:
For cylinders with not continuous and continuous T groove (5 mm)
Advantages:
•can be mounted from above in T-groove,
•no fastening material required,
•one switch fits many products of most European brands (e.g. Festo)
•ATEX approval Group II, Cat. 3D / 3G
Properties
| Version | fully electronic sensor (reverse polarity protection / short circuit proof), yellow LED |
| Operating voltage | 10 - 30 V (DC) |
| Switching | NO contact (PNP) |
| Max. switching current [mA] | 100 |
| Max. capacity | 3 W |
| Connecting line | 6 m, 3x 0.14 mm² |
Further information on ZSB33EX
| Weight | 105 g / pcs |
| GTIN | 4050571887384 |
| Customs duty number | 85365019 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 885) (PDF)
- Documentation: Tips for selecting the right cylinder switch (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
