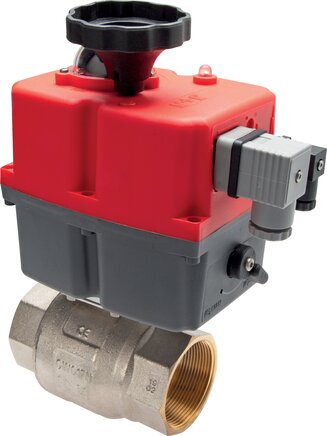

Electr. drinking water ball valve, G 3/4", 24 do 240 V (AC) / 24 do 135 V (DC)

Advantages:
•2 additional limit switches,
•Torque cut-off,
•Variable voltage (DC or AC),
•Manual override,
•Integrated heater in actuator housing,
•Ball valve (as manually operated version) DVGW & KTW certified, ISO 13828

Ball valve


Materials:
Housing: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE / NBR

Temperature range:
-20°C do +150°C

Media:
Drinking water, water, compressed air, vacuum (max. -0.9 bar)

Rotary actuator


Description:
Electrical rotary actuator with optical position indicator, manual emergency operation and switch room heating Two additional limit switches are installed for further control requirements. An electronic torque limiting unit prevents damage in the event of overload. The manual emergency operation can be done without dismantling the external cladding. Do not use upside down!

Materials:
housing: PA 6

Temperature range:
-20°C do +70°C

Voltage:
24 - 240 V AC / 24 - 135 V DC, (actuators can be powered with AC or DC voltage).

Protection class:
IP 67

Power-on time:
75%

Optional:
Positioning time 140 sec. (85 - 240V AC/DC or special design 24V AC/DC: KH...ELI 24-140) -140, "Battery Safety Return" for emergency closing NC (default configuration) or emergency opening NO (conversion with a jumper) when there is a power failure -BSR, Positioning system 0 - 10 V or 4 - 20 mA (conversion with a jumper), precision: 3%, linearity: 2%, hysteresis: 3%, switch position NC or NO (conversion with a jumper) -DPS

Warning:
In case of high media temperatures, the actuator must be cooled if necessary!

Izvedba	Sistem za pozicioniranje 0–10 V/4–20mA
Napetost	24 do 240 V (AC) / 24 do 135 V (DC)
Navoj	G 3/4"
DN	20
Vgradna dolžina krogelna pipa	68
PN	-0,9 do 40
Nastavljalni čas	9
Nadomestni pogoni	ELU 230-2
Temperatura medija	od -20 do +150

{{ $t('shop.all.gtin') }}	4050571914394
{{ $t('shop.display.artikel.zollwarennummer') }}	84818081
