Data sheet

Push in fitting, self-locking 6mm, IQS standard
{{ $t('shop.all.artikelnummer') }}:
IQSK 60

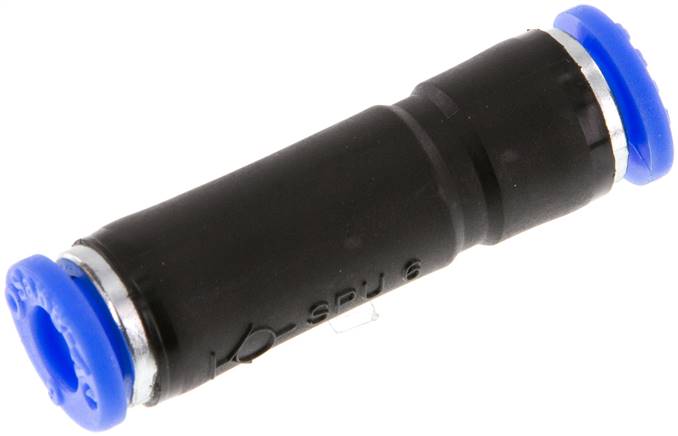

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass / PBT, seal: NBR, holding claw: stainless steel, cartridge: nickel-plated ZnDC, sleeve: PBT (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
0 to 10 bar
Functional principle:
The fitted lock blocks the airflow the moment the hose is disassembled. After pushing a hose in, the airflow is released again.
Media:
Compressed air, neutral gases
Advantages:
•Cheaper than a coupling,
•Closes like a coupling
{{ $t('shop.display.artikel.eigenschaften_headline') }}
D [mm] 6
Further information:
{{ $t('shop.all.gewicht') }} 8,8 g / pcs
{{ $t('shop.all.gtin') }} 4050571376888
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Sang-A
Figure
Drawing:
Drawing: Stop fittings
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number IQSK 60.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
