Data sheet
Elbow swivel joint R 1/2"-12mm, IQS standard
{{ $t('shop.all.artikelnummer') }}:
IQSRL 1212

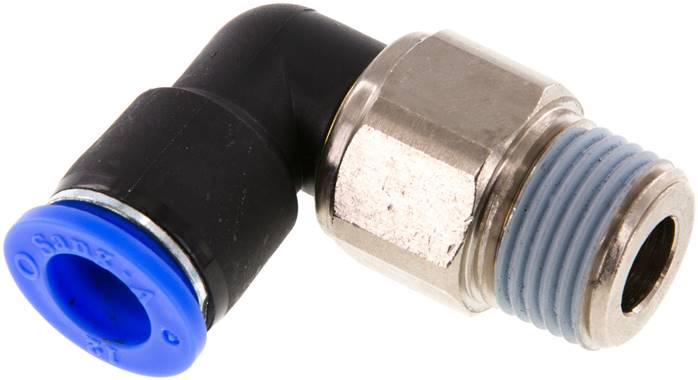

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass / PBT, seal: NBR, holding claw: stainless steel, cartridge: nickel-plated ZnDC, sleeve: PBT (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Functional principle:
The swivel joints (with a ball bearing) prevent the hose from getting twisted during swiveling movements.
Media:
Compressed air, neutral gases
Advantages:
•Reasonable price,
•using holding pliers in the case of frequent rotations effectively prevents the hose from being cut
•using holding pliers in the case of frequent rotations effectively prevents the hose from being cut
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Umax.* [1/min] | 250 |
| R | R 1/2" |
| D [mm] | 12 |
Further information:
| {{ $t('shop.all.gewicht') }} | 95 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571384494 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
Figure
Drawing:
Drawing: Structure of IQS swivel fittings
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number IQSRL 1212.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
