Data sheet
Short-stroke cylinders, single acting, piston 20 mm, stroke 4 mm
{{ $t('shop.all.artikelnummer') }}:
AV 20/4

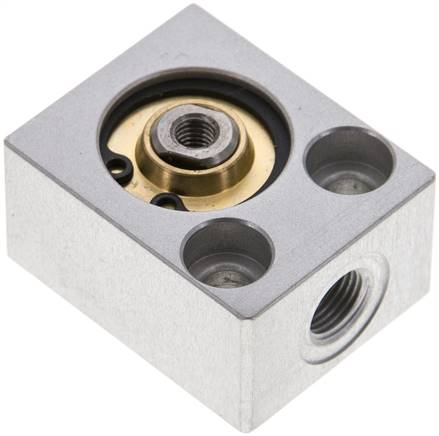

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
housing: anodized aluminium, piston rod: CK 45 hard chromium plated, end cover Ø 80: anodized aluminium, seals: NBR / Polyurethane
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 20 |
| Stroke [mm] | 4 |
Further information:
| {{ $t('shop.all.gewicht') }} | 70 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571221393 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number AV 20/4.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
