Data sheet
P-R-S strip incl. hollow screws and seals for valve series M05 / P05
{{ $t('shop.all.artikelnummer') }}:
R 183/6

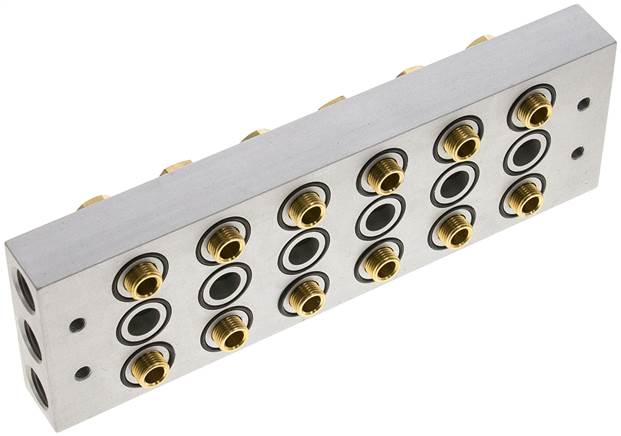

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | P-R-S strip incl. hollow screws and seals |
| Number of stations [PCE] | 6 |
| for valve series | 05 |
| matching closure plate for empty station | R 183/V |
| matching spare hollow screws | H 183 |
| A | M 5 |
| B [mm] | 20 |
| C [mm] | 6 |
| E [mm] | 10 |
| F [mm] | 30 |
| G | G 1/8" |
| H [mm] | 25,25 |
| I [mm] | 36 |
| J [mm] | 20 |
| K [mm] | 60 |
| L | G 1/4" |
| M [mm] | 20 |
| SW [mm] | 14 |
Further information:
| {{ $t('shop.all.gewicht') }} | 600 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571567347 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 76109090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
Drawing:
Drawing: P-R-S manifold for 5/2- & 5/3-way valves, type R 183 / type R 143
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number R 183/6.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
