Data sheet

P-R-S strip incl. hollow screws and seals for valve series M04 / P04
{{ $t('shop.all.artikelnummer') }}:
R 283/2

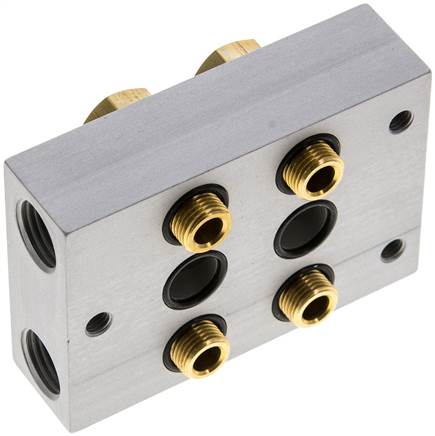

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version P-R-S strip incl. hollow screws and seals
Number of stations [PCE] 2
for valve series 04
matching closure plate for empty station R 283/V
matching spare hollow screws H 283
A M 5
B [mm] 20
C [mm] 5
E [mm] 6
F [mm] 25
G G 1/8"
H [mm] 22,20
I [mm] 6
J [mm] 32
K [mm] 50
L G 1/4"
M [mm] 32
SW [mm] 14
Further information:
{{ $t('shop.all.gewicht') }} 195 g / pcs
{{ $t('shop.all.gtin') }} 4050571567866
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Airtec (WEEE DE94696834 )
Figure
Drawing:
Drawing: P-R-S manifold for 5/2- & 5/3-way valves, type R 283
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number R 283/2.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
