Data sheet

Foot bracket for round cylinders, Ø 32 mm
{{ $t('shop.all.artikelnummer') }}:
RA 32

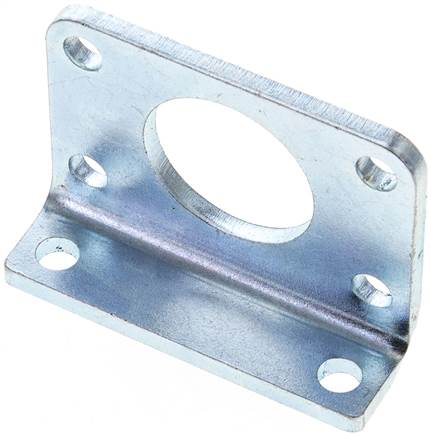

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Zinc plated steel
Scope of delivery:
1 pc foot mounting
{{ $t('shop.display.artikel.eigenschaften_headline') }}
for piston diameter [mm] 32
E [mm] 7
E2 [mm] 28
E3 [mm] 49
L2 [mm] 124
L3 [mm] 148
B3 [mm] 52
B4 [mm] 66
S [mm] 4
A [mm] 7
Further information:
{{ $t('shop.all.gewicht') }} 100 g / pcs
{{ $t('shop.all.gtin') }} 4050571570385
{{ $t('shop.display.artikel.zollwarennummer') }} 84129080
{{ $t('shop.all.hersteller') }} Airtec (WEEE DE94696834 )
Figure
Drawing:
Drawing: Foot attachment (front or rear)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RA 32.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
