Data sheet

Bearing block f. 8 & 10mm ISO 6432 cylinder, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
BG 8/10

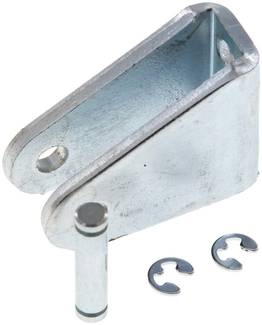

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
1 unit Bearing pedestal
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Zinc plated steel
for piston diameter [mm] 8 & 10
B [mm] 4,5
B1 [mm] 4
C [mm] 12,5
H [mm] 20
L [mm] 24
N [mm] 8,1
O [mm] 17,0
R [mm] 5
S [mm] 2,5
M [mm] 11,25
Further information:
{{ $t('shop.all.gewicht') }} 25 g / pcs
{{ $t('shop.all.gtin') }} 4050571224103
{{ $t('shop.display.artikel.zollwarennummer') }} 84129080
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Airtec (WEEE DE94696834 )
Figure
Drawing:
Drawing: Bearing pedestal with bolt
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number BG 8/10.
