Data sheet

Coupling socket (NW7,2) G 3/8"(Female thread), 1.4404
{{ $t('shop.all.artikelnummer') }}:
KDGI 38 NW7 ES4A KV

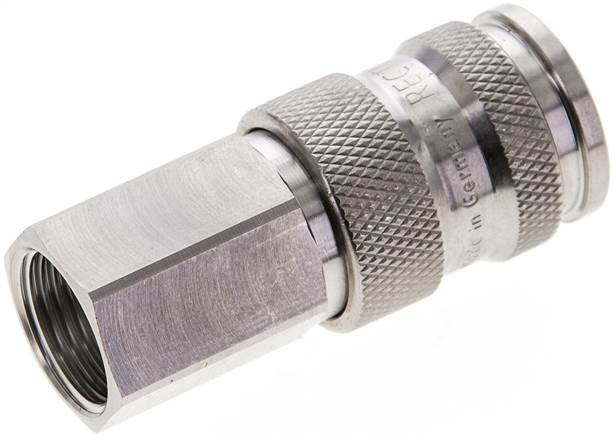

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)
Operating pressure:
-0,95 to 35 bar
Flow***:
Standard: 1100 l/min, ball lock: 1850 l/min, ball lock & plastic sleeve: 2100 l/min (each coupling in conjunction with blocking coupling plug -BA: 800 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
Advantages:
•easy uncoupling under pressure,
•robust connection between plug and socket
Optional:
Body made from 1.4404 -ES4AKV, usable for plug shut-off on both sides -BA
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4404
Thread internal G 3/8"
Can be used for plug shut-off on both sides yes
actual nominal width [mm] 7,8
Temperature range [°C] -15 to +200
Further information:
{{ $t('shop.all.gewicht') }} 90 g / pcs
{{ $t('shop.all.gtin') }} 4050571170608
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Parker
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KDGI 38 NW7 ES4A KV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
