Data sheet
Oxygen hose DIN EN ISO 3821 (DIN8541) 6,3 (1/4")x3,5mm
Item number:
SAU 635

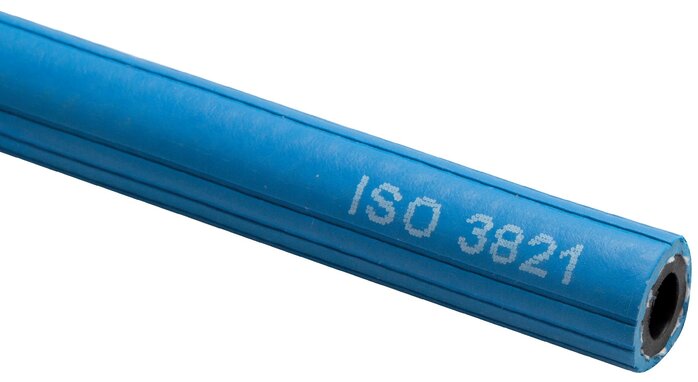

Example illustration
Item description
Materials:
Inner core: EPDM, black, smooth, outer cover: EPDM, grooved, UV-resistant
Temperature range:
-30 to +70 °C
Operating pressure:
20 bar (bursting pressure: 60 bar)
Operating range:
For the connection of oxygen fittings
Roll length:
50 m
Properties
| Hose diameter (inner) [mm] | 6,3 (1/4") |
| Hose diameter (outer) [mm] | 13,3 |
| Wall thickness [mm] | 3,5 |
| Min. bend radius [mm] | 40 |
Further information:
| Weight | 175 g / m |
| GTIN | 4050571867744 |
| Packing unit | 50 m |
| Customs duty number | 40093100 |
| RoHS compliant | Yes |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SAU 635.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 20.05.2025
