Data sheet
safety coupling plug (NW7,2) 6 (1/4")mm hose
{{ $t('shop.all.artikelnummer') }}:
KSS 6 NW7 S

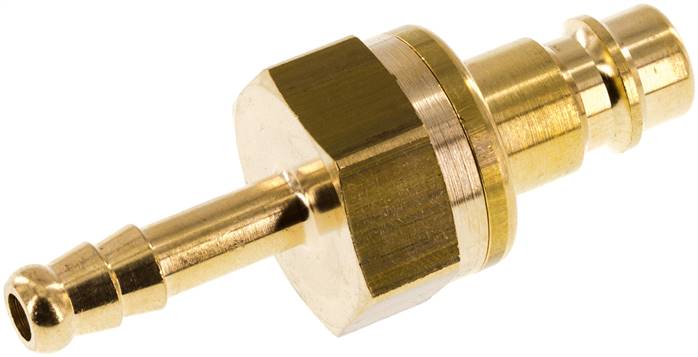

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Function:
These coupling plugs meet almost all the functions of a safety coupling. The hose line is vented slowly over multiple venting notches, this helps prevent beating of the hose line.
Temperature range:
-20 to +60 °C
Operating pressure:
max. 16 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Hose diameter (inner) [mm] | 6 (1/4") |
| Flow* [l/min] | 525 |
Further information:
| {{ $t('shop.all.gewicht') }} | 42 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571454449 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Parker |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KSS 6 NW7 S.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
