Data sheet
2-Ear hose clip 7 to 9mm, Zinc-plated steel (W1)
{{ $t('shop.all.artikelnummer') }}:
SSO 9/4

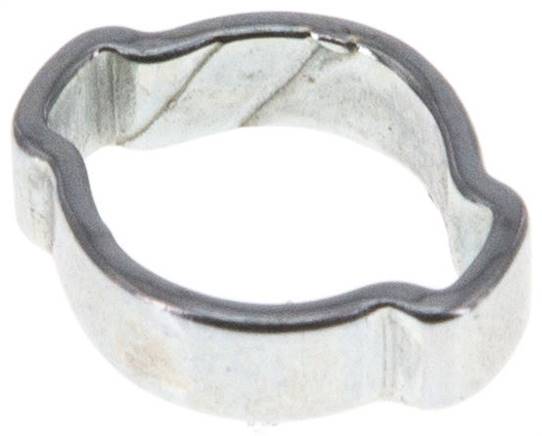

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
2 ear clamps are assembled by squeezing closed using clamping pliers, and can only be released by squeezing opening with a diagonal cutter. The clamp cannot be reused.
Advantages:
•Small design,
•“Self-suspended”,
•No protruding thread tongues (no risk of injury),
•Insoluble,
•Larger clamping range in comparison to one-ear clamps
•“Self-suspended”,
•No protruding thread tongues (no risk of injury),
•Insoluble,
•Larger clamping range in comparison to one-ear clamps
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc-plated steel (W1) |
| Diameter clamping range [mm] | 7 - 9 |
| Tape width [mm] | 4 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,2 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571644277 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.all.hersteller') }} | Oetiker |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SSO 9/4.
