Data sheet
bulkhead screw connection G 1-1/4"-M 49x2, Brass
{{ $t('shop.all.artikelnummer') }}:
SV 114 MS

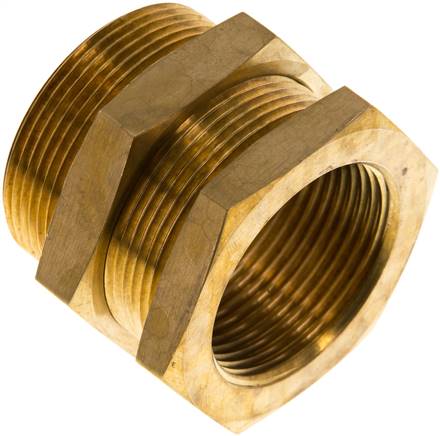

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Thread internal | G 1-1/4" |
| Thread external | M 49x2 |
| Bulkhead thread A | M 49x2 |
| Emax [mm] | 29,5 |
| PN [bar] | 16 |
Further information:
| {{ $t('shop.all.gewicht') }} | 310 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571649876 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SV 114 MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
