Data sheet

ISO 15552-flange attachment 32 mm, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
TB 32

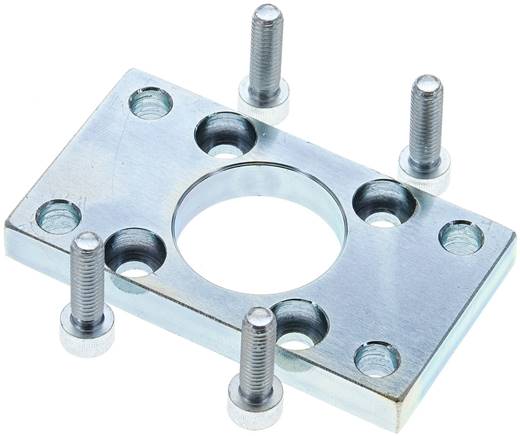

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
1 flange plate, incl. 4 fastening screws
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Zinc plated steel
for piston diameter [mm] 32
B [mm] 7
D [mm] 10
L [mm] 130
M [mm] 45
N [mm] 32,5
T [mm] 64
TM [mm] 32
U [mm] 80
Further information:
{{ $t('shop.all.gewicht') }} 180 g / pcs
{{ $t('shop.all.gtin') }} 4050571689308
{{ $t('shop.display.artikel.zollwarennummer') }} 84129080
Figure
Drawing:
Zeichnung: Flanschbefestigung für Pneumatikzylinder ISO 15552
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number TB 32.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
