Data sheet
LFR-1/4-DB-7-O-MINI-H (537645) filter regulator
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO024077

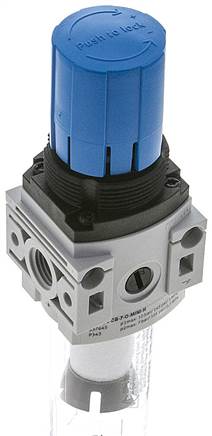

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| size | Mini |
| Width [mm] | 44 |
| Model series | DB |
| Actuation fuse | Rotary button with stopper |
| installation position | vertical ± 5° |
| Filter porosity [µm] | 40 |
| Condensate drain | Semi-automatic |
| Construction set up | Filter regulator without pressure gauge |
| Controller function |
With Return current behaviour, With relieving |
| pressure display | G1/8 prepared |
| Operating pressure [bar] | 1.5 to 10 |
| Pressure regulation range [bar] | 0.5 to 7 |
| Max. pressure hysteresis [bar] | 0,5 |
| Normal nominal flow [l/min] | >= 1200 l/min |
| Operating medium |
Inert gases, Compressed air to ISO 8573-1:2010 [-:9:-] |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| Air purity class at the output |
Compressed air to ISO 8573-1:2010 [7:8:4], Inert gases |
| Medium temperature [°C] | -5 to 50 |
| ambient temperature [°C] | -5 to 50 |
| Fastening type |
pipe installation, With throughway bores, With mounting bracket, Selectively: |
| Pressure gauge connection | G1/8 |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G1/4 |
| Material information | RoHs compliant |
| Seals material | NBR |
| Rotary button material | POM |
| Filter material | PE |
| Housing material | PA reinforced |
| Clamps material | PC |
Further information:
| {{ $t('shop.all.gewicht') }} | 170 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568088576 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811005 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO024077.
