Data sheet
Replacement diaphragm model series Futura 1 (R, FR, RB, CL)
{{ $t('shop.all.artikelnummer') }}:
MEMBRANE R14 F

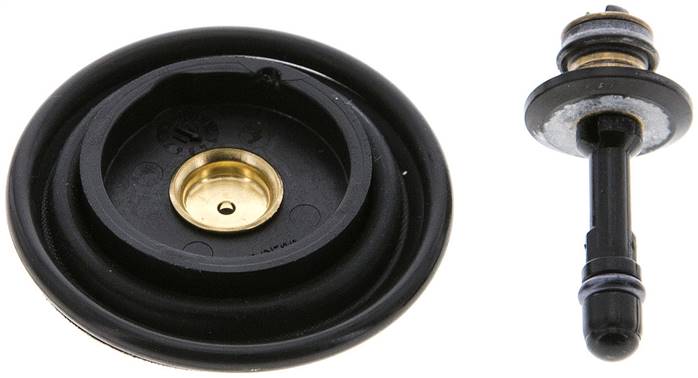

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
Diaphragm with control piston and O-ring seal
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| for series (type) | Futura 1 (R, FR, RB, CL) |
Further information:
| {{ $t('shop.all.gewicht') }} | 12 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571486693 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84819000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MEMBRANE R14 F.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
