Data sheet

ACE side load adapter, M 45x1,5, for MA 4525..., MC 4525..., SC 4525...
{{ $t('shop.all.artikelnummer') }}:
BV 4525

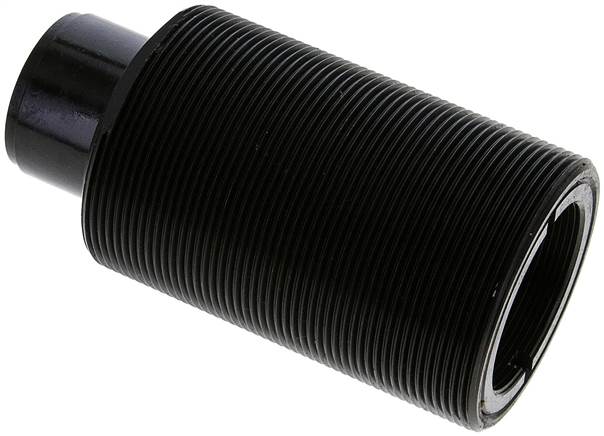

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Note:
The side load adapter can only be fitted to shock absorbers without impact heads. This must if nec. be removed.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Suitable for shock absorbers MA 4525..., MC 4525..., SC 4525...
Thread B M 45x1,5
A [mm] M 64x2
E [mm] 40
H [mm] 100
I [mm] 129,0
L [mm] 29,0
Further information:
{{ $t('shop.all.gewicht') }} 1,5 kg / pcs
{{ $t('shop.all.gtin') }} 4050571229344
{{ $t('shop.display.artikel.zollwarennummer') }} 84879059
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} ACE
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number BV 4525.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
