Data sheet

3-way T-ball valve, brass, T-borehole, G 1/8",PN 20
{{ $t('shop.all.artikelnummer') }}:
KHTC 3/18 T

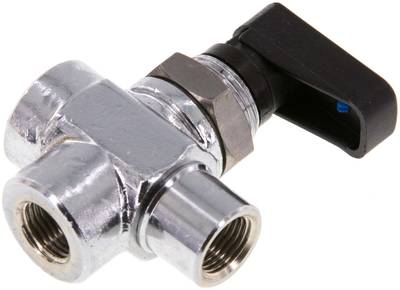

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: chrome-plated brass, ball: chrome-plated brass, seals: PTFE / NBR
Temperature range:
-20 to +80 °C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.99 bar)
Switch panel mounting:
Hole diameter: 14,5 mm, sheet metal thickness: max. 4,5 mm
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version T-borehole
G G 1/8"
DN [mm] 5
L [mm] 35
PN [bar] -0.99 to 20
H [mm] 33,5
H1 [mm] 15,5
R [mm] 19
Further information:
{{ $t('shop.all.gewicht') }} 75 g / pcs
{{ $t('shop.all.gtin') }} 4050571427702
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: 3-way ball valve, vertical, with mounting thread (compact)
Drawing: T-borehole
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KHTC 3/18 T.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
