Data sheet
Venturi nozzle for blow gun, M 12x1,25 (Male thread), Plastic
{{ $t('shop.all.artikelnummer') }}:
VD-BLP

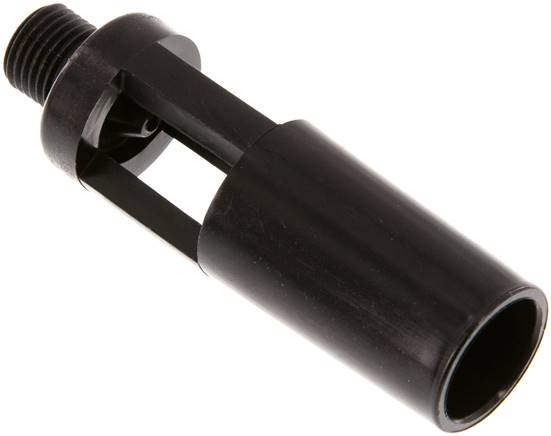

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
Energy-saving due to lateral air intake, resulting in amplification at a ratio of approx. 1 : 4. Only approx. 25% of the air is required for the same blowing capacity. Particularly suitable for blowing off dust and water. As soon as the distance between the nozzle and the surface becomes too small, the air escapes to the side.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Plastic |
| Thread external | M 12x1,25 |
| Adapter for line installation (G 1/4 MT) | RN 14-M12X1,25 MS |
Further information:
| {{ $t('shop.all.gewicht') }} | 12 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571856588 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84249080 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VD-BLP.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
