Data sheet

Straight screw connection M 5-4,3x3mm, Nickel-plated brass
{{ $t('shop.all.artikelnummer') }}:
CK 53 MSV

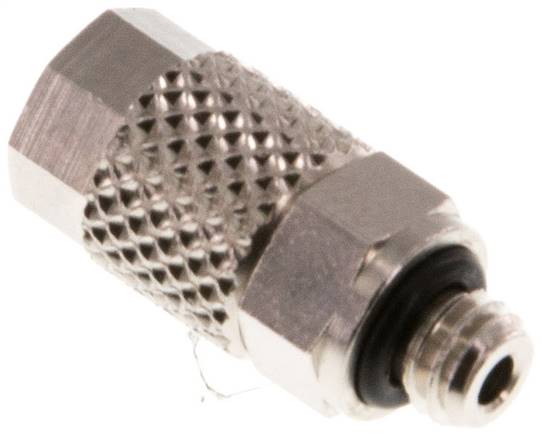

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Type brass nickel-plated (NBR & FKM seal)
Operating pressure:
-0.95 to 20 bar
Temperature range:
-20°C up to max. +80°C, with FKM seal to max. +150°C
aluminium type
Operating pressure:
-0.99 to 15 bar
Temperature range:
-15°C to max. +70°C
Type plastic (POM)
Operating pressure:
-0.99 to 10 bar
Temperature range:
-10°C to max. +60°C
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Nickel-plated brass
Seals NBR
Screw-in thread M 5
Hose diameter (outer x inner) [mm] 4,3x3
Operating pressure [bar] -0.95 to 20
Temperature range [°C] -20 to +80
Further information:
{{ $t('shop.all.gewicht') }} 6,8 g / pcs
{{ $t('shop.all.gtin') }} 4050571234430
{{ $t('shop.display.artikel.zollwarennummer') }} 74122000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number CK 53 MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
