Data sheet

Siphon, circular (ST 35.8) G 1/2" (male thread)
{{ $t('shop.all.artikelnummer') }}:
WSRK 1212 ST

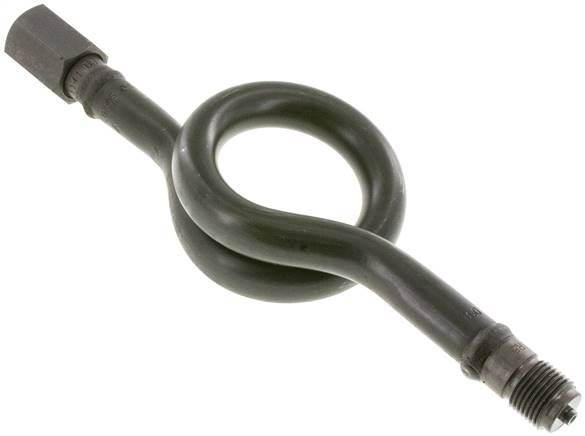

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
A water-filled U-tube is used to cool off the measured material (liquid or gas) at a temperature compatible with the measuring tool. They are mounted directly in front of the measuring tool.
Reference values for the pressure utilisation under temperature loading:
up to +120°C: 100%, +300°C: 80%, +400°C: 63%
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material ST 35.8
Version DIN 16282
Design C
G1 G 1/2" (male thread)*
G2 G 1/2" (female thread) clamping socket**
PN [bar] 100
H [mm] 275
Further information:
{{ $t('shop.all.gewicht') }} 700 g / pcs
{{ $t('shop.all.gtin') }} 4050571786212
{{ $t('shop.display.artikel.zollwarennummer') }} 84819000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} WIKA (WEEE DE92770372)
Figure
Drawing:
Drawing: Siphon type C and D
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number WSRK 1212 ST.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
