Data sheet
ISO 6432 cylinders, single acting, piston 12 mm, stroke 25 mm
{{ $t('shop.all.artikelnummer') }}:
ZEM 12/25

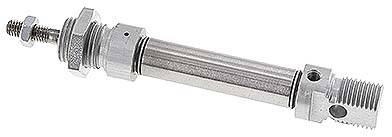

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 12 |
| Stroke [mm] | 25 |
| A (piston rod thread) | M 6 |
| B (fastening thread) | M 16x1,5 |
| G (compressed air port) | M 5 |
| A1 [mm] | 6 |
| C [mm] | 19 |
| D [mm] | 12 |
| E [mm] | 6 |
| F [mm] | 16 |
| G [mm] | 75 |
| K [mm] | 22 |
| L [mm] | 18 |
| M [mm] | 104 |
| N [mm] | 9 |
| P [mm] | 48 |
| CH [mm] | 5 |
Further information:
| {{ $t('shop.all.gewicht') }} | 80 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571815639 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
Drawing:
Drawing: Round cylinder ISO 6432
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number ZEM 12/25.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
