Data sheet

Hydraulic check valves, G 1/4", PN 350,Stainless steel
{{ $t('shop.all.artikelnummer') }}:
RUCK 14 HD ES

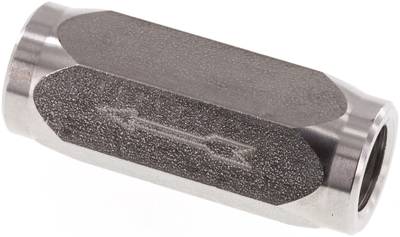

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4404, seal: tapered seat with FKM soft seal
Temperature range:
-25 to +200 °C
Opening pressure:
approx. 0.5 bar, other opening pressures upon request
{{ $t('shop.display.artikel.eigenschaften_headline') }}
G G 1/4"
DN [mm] 7
L [mm] 50
SW [mm] 19
PN [bar] 350
opening pressure [bar] 0,5
Further information:
{{ $t('shop.all.gewicht') }} 80 g / pcs
{{ $t('shop.all.gtin') }} 4050571607333
{{ $t('shop.display.artikel.zollwarennummer') }} 84813091
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Check valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RUCK 14 HD ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
