Data sheet
dust protection for plugs screw coupling, size 8
{{ $t('shop.all.artikelnummer') }}:
592022

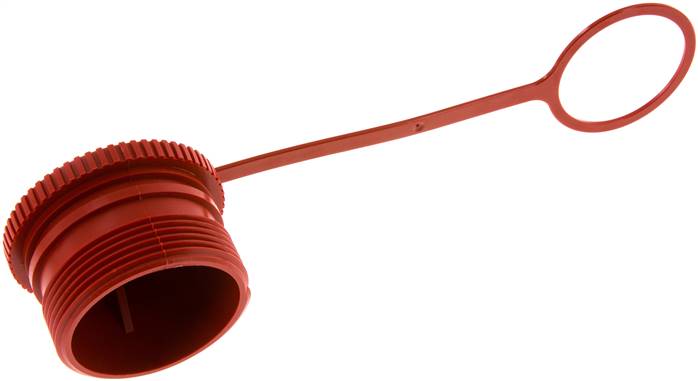

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | for plugs |
| for size | 8 |
| A | M 70 x 3 |
| B [mm] | 85 |
| DN (ISO) [mm] | 31,5 |
Further information:
| {{ $t('shop.all.gewicht') }} | 55 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571205287 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812010 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Sizing for screw couplings
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 592022.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
