Data sheet
Hose nipple 22 L (M30x2), 21 to 22mm, zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
851 2000

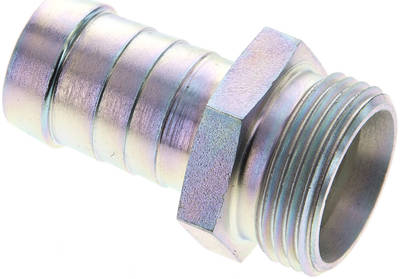

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Model series | light model series |
| DN [mm] | 20 |
| Hose diameter (inner) [mm] | 21 - 22 |
| for pipe diameter (outer) | 22 L (M30x2) |
| Spanner width [mm] | 32 |
Further information:
| {{ $t('shop.all.gewicht') }} | 85 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571211141 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181535 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 851 2000.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
