Data sheet
30mm hinge bolt clamps, 174 to 187mm, 1.4016 (W2)
{{ $t('shop.all.artikelnummer') }}:
SSB 187 ES

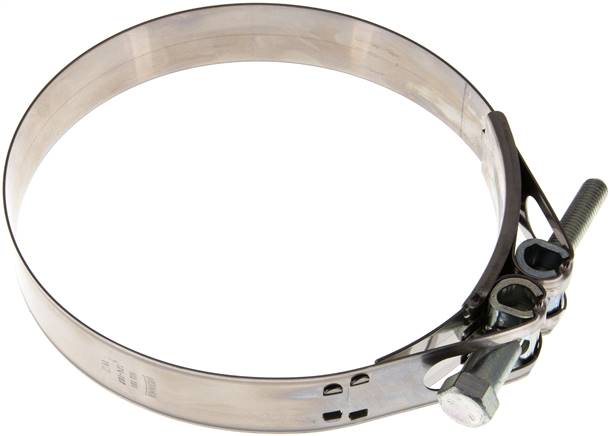

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
For use in demanding applications, such as the mounting of suction and pressure hoses with high Shore hardness or with plastic or steel inserts. Ideal for commercial vehicle construction, industry, construction machinery, farming, mining, ...
Materials:
Tape and housing: 1.4016 (W2), screw: zinc plating steel
Optional:
Material complete 1.4301 (W4) -2A
Advantages:
•Hollow pin reduces load on screw and strap. Increased service life
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | 1.4016 (W2) |
| Diameter clamping range [mm] | 174 - 187 |
| Tape width [mm] | 30 |
Further information:
| {{ $t('shop.all.gewicht') }} | 310 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571640897 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Norma |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SSB 187 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
