Data sheet
Reducer 48,3x2,0mm - 26,9x2,0mm, 1.4571 welded
{{ $t('shop.all.artikelnummer') }}:
R48,320/26KA6

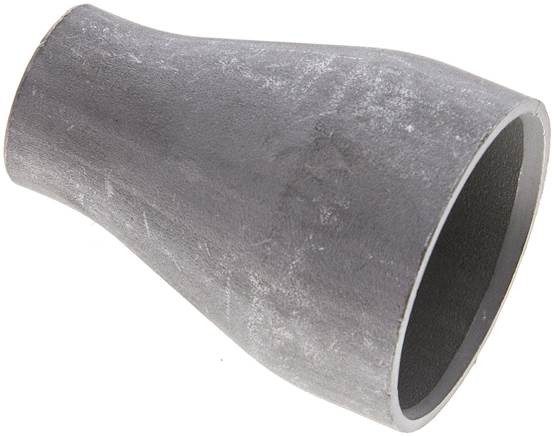

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4571* |
| Connection D1 [mm] | 48,3 |
| Wall thickness S1 [mm] | 2,0 |
| Connection D2 [mm] | 26,9 |
| Wall thickness S2 [mm] | 2,0 |
| Version | welded |
| L [mm] | 64 |
| Standard | EN 10253 Typ B (DIN 2616) |
Further information:
| {{ $t('shop.all.gewicht') }} | 140 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571569273 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
Figure
Drawing:
Drawing: Concentric reducer
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number R48,320/26KA6.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
