Data sheet
Tanker lorry coupling crown piece for MK 50 ES, 1.4408
{{ $t('shop.all.artikelnummer') }}:
MKKS 50 ES

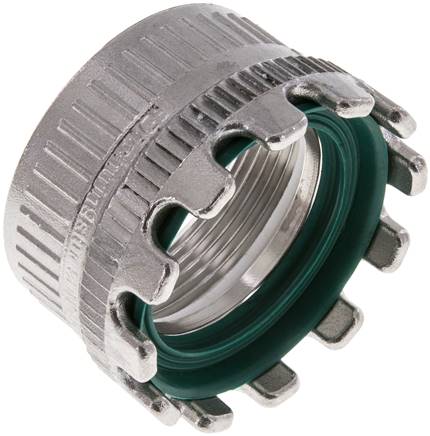

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4408, brass or aluminium, coupling soft seal: CSM (Hypalon) (type aluminium: NBR), thread seal: PTFE (brass type: Polyurethane), chain: 1.4401 (aluminium type: 1.4301)
Temperature range:
-20 to +80 °C
Operating pressure:
max. 16 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4408 |
| suitable for | MK 50 ES |
| Thread internal | G 2" |
Further information:
| {{ $t('shop.all.gewicht') }} | 220 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571160975 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MKKS 50 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
