Data sheet

Filter regulator, 1.4404, G 1/4", 1,5 to 15bar (Standard)
{{ $t('shop.all.artikelnummer') }}:
FR 14 ES

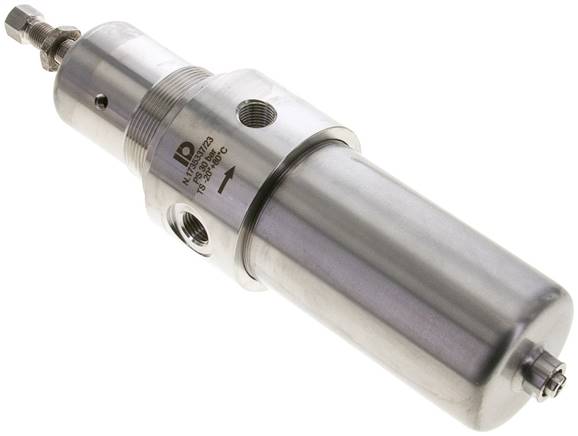

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Self-relieving (with secondary vent)
Materials:
Seals: FKM, membrane: NBR (PTFE coated), filter: 1.4401
Temperature range:
-20 to +80 °C
Input pressure:
max. 30 bar
Pore width in the filter:
50 µm
Erreichbare Druckluftqualität (ISO 8573-1):
[7:4:4] (ohne Kältetrockner: [7:7:4])
Media:
Oiled and unoiled compressed air, non-toxic gasses
Pressure gauge connection:
G 1/4"
Switch panel thread:
M 45x1,5
Optional:
automatic drain (inlet pressure 2 - 16 bar) -AM
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Standard
Material 1.4404
Thread G 1/4"
Pressure regulation range [bar] 1,5 - 15
Flow* [l/min] 800
Condensate draining Manually
L [mm] 64
H [mm] 249
C [mm] 121
Mounting brackets WH 14 ES
recommended pressure gauge MW 2563 ES
Further information:
{{ $t('shop.all.gewicht') }} 1,7 kg / pcs
{{ $t('shop.all.gtin') }} 4050571306175
{{ $t('shop.display.artikel.zollwarennummer') }} 84811005
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Zeichnung: Filterregler (Solid)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FR 14 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
