Data sheet
Bearing block f. 12 & 16mm ISO 6432 cylinder, 1.4301
{{ $t('shop.all.artikelnummer') }}:
BG 12/16 ES

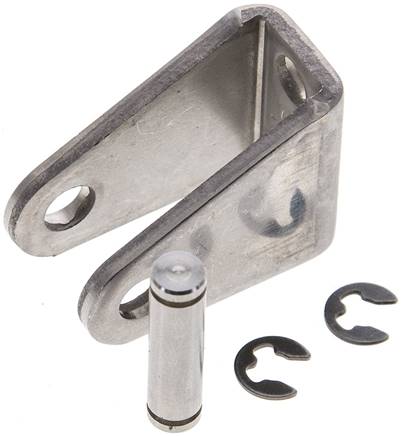

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
1 unit Bearing pedestal
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4301 |
| for piston diameter [mm] | 12 & 16 |
| B [mm] | 5,5 |
| B1 [mm] | 6 |
| C [mm] | 15,0 |
| H [mm] | 25 |
| L [mm] | 27 |
| N [mm] | 12,1 |
| O [mm] | 23,0 |
| R [mm] | 7 |
| S [mm] | 3,0 |
| M [mm] | 13,00 |
Further information:
| {{ $t('shop.all.gewicht') }} | 40 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571224073 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Bearing pedestal with bolt
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number BG 12/16 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
