Data sheet

foot bracket for 12 & 16mm ISO 6432 cylinder, 1.4301
{{ $t('shop.all.artikelnummer') }}:
BF 12/16 ES

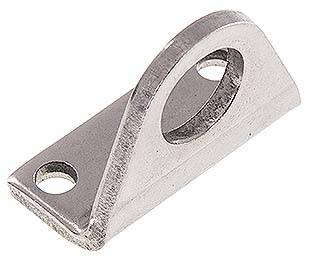

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
1 pc foot mounting
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4301
for piston diameter [mm] 12 & 16
A [mm] 16
B [mm] 5,5
C [mm] 42
D [mm] 32
G [mm] 14
H [mm] 20
J [mm] 20
R [mm] 12,5
S [mm] 4
Further information:
{{ $t('shop.all.gewicht') }} 41 g / pcs
{{ $t('shop.all.gtin') }} 4050571223229
{{ $t('shop.display.artikel.zollwarennummer') }} 73269098
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Foot attachment (front or rear)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number BF 12/16 ES.
