Data sheet

ISO 15552-Yoke swivel fastening 32 mm, 1.4401
{{ $t('shop.all.artikelnummer') }}:
TC 32 ES

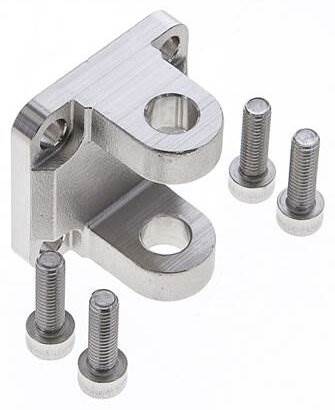

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
1 pc swivel fixation, incl. 4 fastening screws
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4401
for piston diameter [mm] 32
A [mm] 45
B [mm] 26
D [mm] 10
L [mm] 142
F [mm] 22
M [mm] 45
N [mm] 32,5
Further information:
{{ $t('shop.all.gewicht') }} 170 g / pcs
{{ $t('shop.all.gtin') }} 4050571689599
{{ $t('shop.display.artikel.zollwarennummer') }} 73269098
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Swivel mounting fork
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number TC 32 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
