Data sheet
ES-Ball valve with pneumatic actuator, Rp 1/2"
{{ $t('shop.all.artikelnummer') }}:
KH 12 P ES B

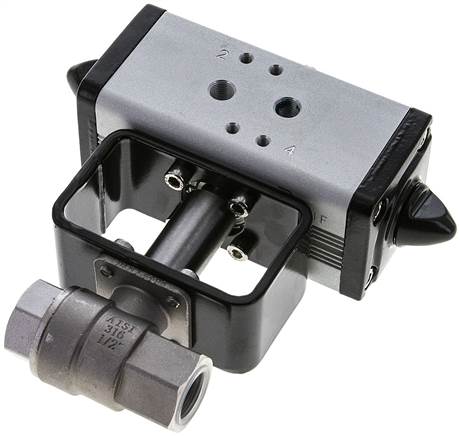

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Ball valve:
Materials:
Housing: stainless steel 1.4408, ball valve: stainless steel 1.4401, seal: PTFE/FKM
Temperature range:
-20 to +150 °C
Media:
Water, compressed air, gas and aggressive media
Rotary actuator:
Temperature range:
-20 to +80 °C
Operating pressure:
5,6 to 8,4 bar
Control medium:
filtered, dry air; must not be lubricated; for lubrication, non-cleaning oil that is compatible with NBR can be used
Warning:
In case of high media temperatures, the actuator must be cooled if necessary!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | double acting |
| Thread | Rp 1/2" |
| DN [mm] | 15 |
| PN [bar] | 100 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,4 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571409111 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 12 P ES B.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
