Data sheet
T-piece Rp 1-1/4"-Rp 1"-Rp 1-1/4" (Female thread), Galvanised malleable cast iron
{{ $t('shop.all.artikelnummer') }}:
T 11410114 ST

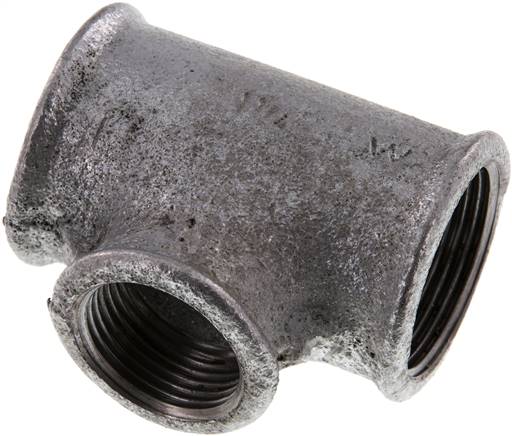

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Galvanised malleable cast iron |
| Thread G1 | Rp 1-1/4" |
| Thread G2 | Rp 1" |
| PN [bar] | 25 |
Further information:
| {{ $t('shop.all.gewicht') }} | 390 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571682903 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071910 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number T 11410114 ST.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
