Data sheet
T push in fitting R 1/4"-4mm, IQS stainless steel
{{ $t('shop.all.artikelnummer') }}:
IQST 144 ES

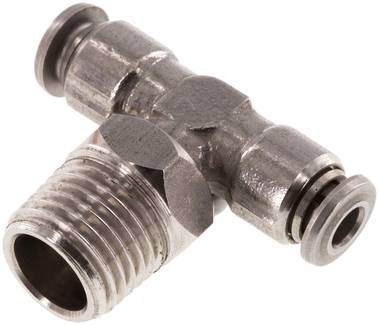

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and sleeve: 1.4404, seals: FKM, FDA-compliant (cylindrical thread with chambered FKM O-Ring, FDA-conformant), (only silicone-free seals and lubricants are used at the time of assembly)
Temperature range:
-20°C to max. +150°C (Ø 16 mm: -15°C to max. +120°C)
Operating pressure:
-0,95 to 15 bar (Ø 16 mm: max. 10 bar)
Media:
oiled and unoiled compressed air, non-hazardous gasses and liquids
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| R | R 1/4" |
| D [mm] | 4 |
| Temperature range [°C] | -20 to +150 |
| Operating pressure [bar] | -0.95 to 15 |
Further information:
| {{ $t('shop.all.gewicht') }} | 23 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571385712 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072980 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number IQST 144 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
