Data sheet
Spring plunger M 5 (AG)xM 5 (Female thread), stroke 10mm, Standard
{{ $t('shop.all.artikelnummer') }}:
VSFS 50A/50-10

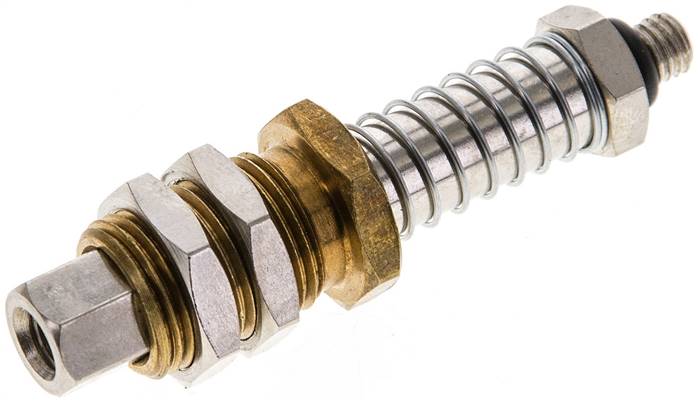

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Steel, galvanized / Brass, gaskets: NBR
Temperature range:
-10 to +80 °C
Operating pressure:
-1 to 0 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| G1 | M 5 (MT) |
| G2 | M 5 |
| Stroke [mm] | 10 |
| Bulkhead thread G3 | M 12x1 |
| Emax [mm] | 8,5 |
| L1 [mm] | 52,5 |
| L2 [mm] | 19 |
| L3 [mm] | 21,0 |
| Shape | 2 |
Further information:
| {{ $t('shop.all.gewicht') }} | 28 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571725655 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84879090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Shape 2
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VSFS 50A/50-10.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
