Data sheet
4-way ball valve, PP, G 1/2", PN 10, throughway bore
{{ $t('shop.all.artikelnummer') }}:
KH 124 D PP

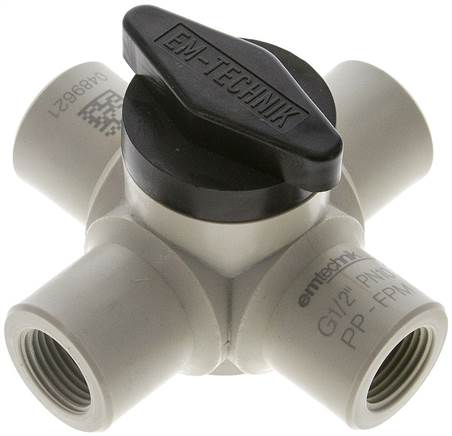

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and ball: polypropylene, PVDF, PFA, Seals: FKM
Temperature range:
Polypropylene: +5°C up to max. +90°C, PVDF: -40°C up to max. +140°C, PFA: -40°C up to max. +180°C
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | PP |
| Thread | G 1/2" |
| DN [mm] | 10 |
| length [mm] | 100 |
| PN* [bar] | -0.95 to 10 |
| Accessories retention clip | KKKH 12 |
| Temperature range [°C] | +5 to +90 |
Further information:
| {{ $t('shop.all.gewicht') }} | 200 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571408251 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 124 D PP.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
