Data sheet

Pressure gauge transducer 0 to 2,5 bar, flush-mounted diaphragm
{{ $t('shop.all.artikelnummer') }}:
DMU 2,5 FB ES

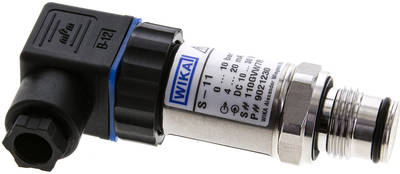

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For high-viscosity and crystallised measured material, adjustable zero and span
Materials:
Body and wetted parts: 1.4571, NBR
Temperature range:
Measured material temperature: -30 to +100 °C, ambient temperature: -20 to +80 °C
Protection class:
IP 65
Connection:
0.25 - 1.6 bar G 1" with O-Ring (NBR), 2.5 - 600 bar G 1/2" with O-Ring (NBR)
Power supply:
10 - 30 V DC
Electrical connection:
Angled plug DIN 43650 / EN 175301-803 A (size 3, 4-pole)
Output signal:
4-20 mA
Non-linearity (IEC 61298-2):
± 0.2 % of span (BFSL)
Accuracy (IEC 61298-2):
± 0,5 % of range
Transmission fluid*:
Silicone oil
Note:
WIKA Type S-11
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Pressure measuring transducer
Connection thread G 1/2" (male thread)
Measurement range [bar] 0 - 2.5
Safe at overpressure up to [bar] 10
Accessory screw-in nozzle Ø 50 (21 tall) DMU FB AS 12
Further information:
{{ $t('shop.all.gewicht') }} 260 g / pcs
{{ $t('shop.all.gtin') }} 4050571252564
{{ $t('shop.display.artikel.zollwarennummer') }} 90262020
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} WIKA (WEEE DE92770372)
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DMU 2,5 FB ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
