Data sheet
Cotter pin, doubled, 5,00mm, for shaft 18 to 30mm Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
11024-2-5

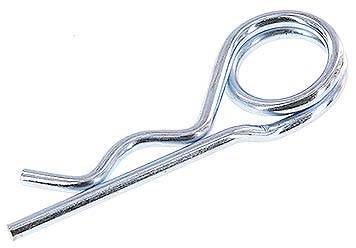

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Version | doubled |
| Wire diameter D [mm] | 5,00 |
| L [mm] | 92 |
| D1 [mm] | 26 |
| for shaft diameter [mm] | 18 - 30 |
Further information:
| {{ $t('shop.all.gewicht') }} | 50 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571028633 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73182100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Cotter pin (double)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 11024-2-5.
